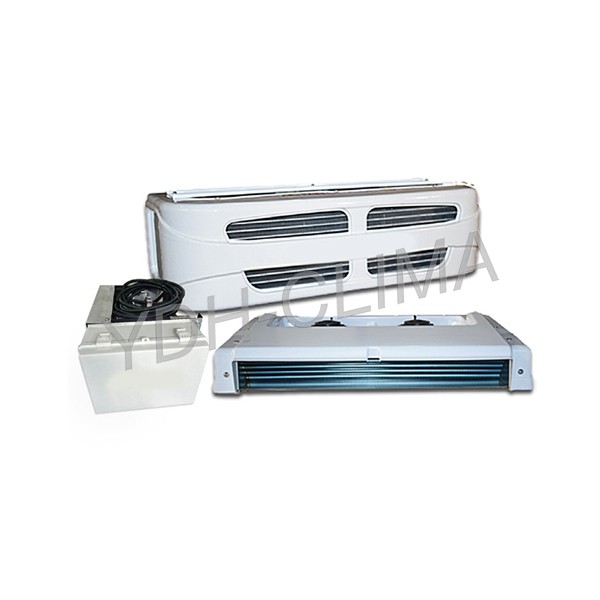

YDH.RF.0287

Driven Type:Engine Driven+Standby Unit
Installation:Front Mounted
Voltage
Standby:AC220V,50HZ(60HZ),1PH/AC380V,50HZ,3PH
Engine Driven:DC24V
Compressor(Engine Driven):JAP SD5S14(138cc)
Compressor(Standby Unit):DY507
Controller:Digital, In Cab
Engine Cooling Capacity:-20℃-1804W/6150 BTU/0℃-3666W/12500 BTU
Standby Unit
Motor Power:220V-2KW/380V-2KW
Peak Current:220V-14A/380V-10A
Running Current:220V-12A/380V-9A
Cooling:-20℃-1800W/6138BTU/0℃-5058W/17361 BTU
Volume of container:7CBM-14CBM(-20℃）
Refrigerant:HFC-R404A,1.4KG
Condenser
Coil:Copper Tube & Aluminum Fin
Fan No:1
Dimension:1213*483*233 mm
Evaporator
Coil:2
Blower No.:Copper Tube & Aluminum Fin
Air Flow:1160m³/h
Dimension:1006*590*188 mm
