YDH.FA.0068

Technical parameter
Rated voltage:DC24V
Rated current: ≤7.5A
Speed range: 1000-2700rpm
Rated speed:2700±100rpm
Motor power :160W
Noise:≤77dB(A)
Control system:PWM/Temperature

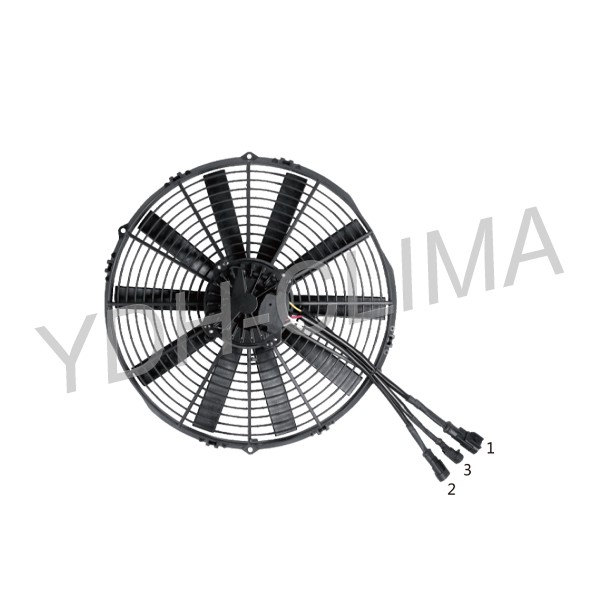

Could work with connecting the positive and negative charges
lst wire: red wire is '+', black wire is '﹣'
2nd wire: two white wires are temperature sensor
3rd wire: yellow wire is pwM, voltage-control wire
