YDH.FA.0070

Technical parameter
Rated voltage:DC24V
Rated current: ≤6A
Speed range: 1000-2900rpm
ated speed:2900±100rpm
Motor power :130W
Noise:≤69dB(A)
Control system:PWM/Temperature
Temperature range:-40~±90℃

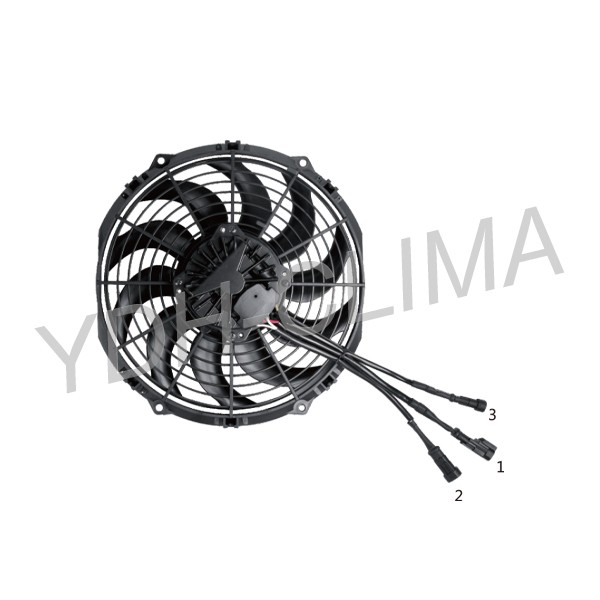

Could work with connecting the positive and negative charges
lst wire: red wire is '+', black wire is '﹣'
2nd wire: two white wires are temperature sensor
3rd wire: yellow wire is pwM, voltage-control wire
