YDH.FA.0060

Technical parameter
Rated voltage:DC24V
Rated current: ≤5A
Speed range: 1000-3050rpm
Rated speed:3050±100rpm
Motor power:120W
Noise:≤75dB(A)
Control system:PWM/Temperature
Temperature range:-40~+90℃

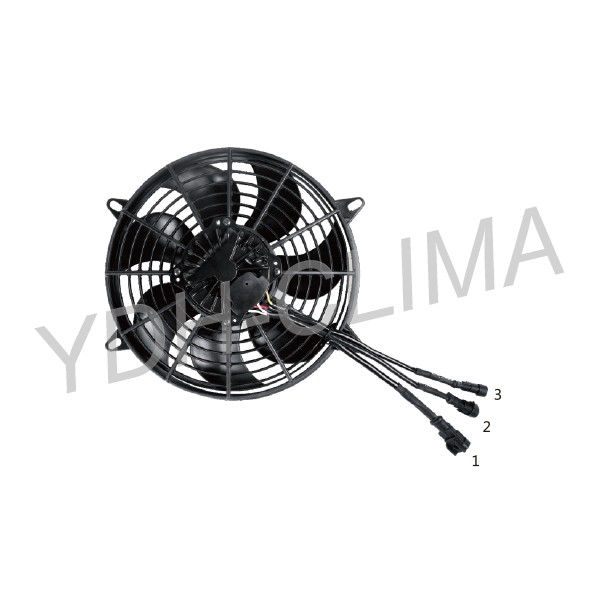

Could work with connecting the positive and negative charges
lst wire: red wire is '+', black wire is '﹣'
2nd wire: two white wires are temperature sensor
3rd wire: yellow wire is pwM, voltage-control wire
