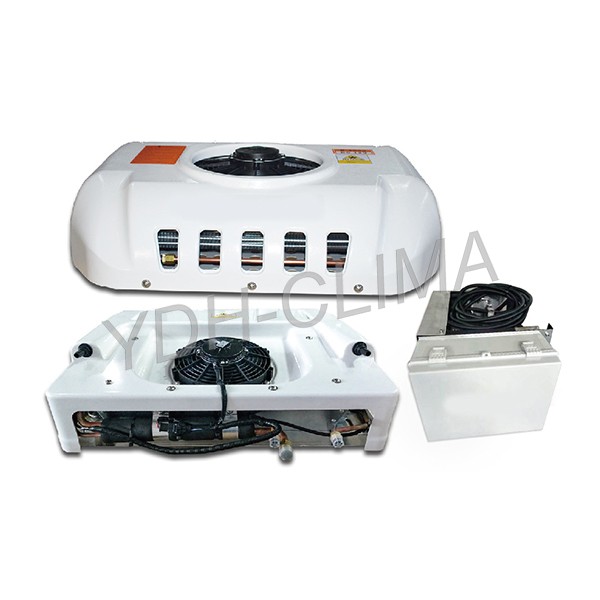

YDH.RF.0269

Driven Type：Engine Driven+Standby Unit
Installation：Roof Top Mounted
Voltage
Standby：AC220V, 50HZ(60HZ),1PH/AC380V,50HZ,3PH
Engine Driven：DC24V
Controller：Digital, In Cab
Compressor(Engine Driven)：Jap SD5H14(138CC)
Compressor(Standby Unit)：DY507
Volume of Container：3CBM/2.2Meters-Body(-20℃)
Refrigerant：HFC-R404A.1.1-1.2KG
Standby Unit
Power:220V-1.8KW/380V-1.8KW
Peak Current:220V-12A/380V-9A
Running Current:220V-10A/380V-7A
Cooling Capacity
Engine Driven:-20℃-1100W/3770BTU/0℃-2170W/7400BTU
Stand By:-20℃-890W/3020BTU/0℃-1740W/5920BTU
Condenser
Coil:Copper Tube/Aluminum Fin
Fan No.:1, Fan, DIA 280MM
Dimension:916*493*233 mm
Evaporator
Blower No.:Copper Tube/Aluminum Fin
Coil:1, Blower DIA 230MM
Air Flow:610m³/h
Dimension:706*595*190 mm
