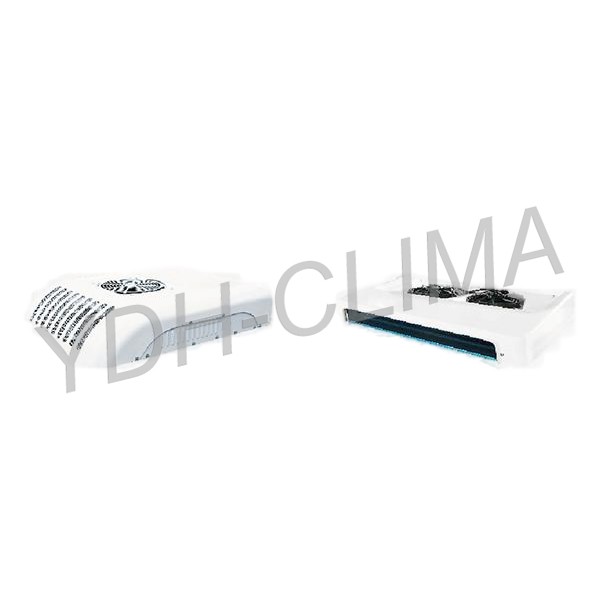

YDH.RF.0135

Cooling Capacity
0℃/+38℃:2650W/9042Btu
-18℃/+38℃:1430W/4879Btu
Temperature Range:-18℃~+30℃
Voltage:DC24V
Standby Voltage:AC220~240V
Defrosting:Hot gas defrosting
Evap. Air Volume:1750m³/h
Refrigerant & Volume:R404a/1.3kg
Compressor
On Road:Model:5S14, 138cc/r
Standby:Brand:HIGHLY
Standby:Dis.:35.6mL/rev
Condenser
Coils:Parallel flow
Fan Qty.:1Pcs
Size:1150*860*250mm
Weight:69kg
Evaporator
Coils:Copper tube and fin
Fan Qty.:2Pcs
Size:1010*570*150mm
Weight:15kg
Recommended Box Size:8-15m³
