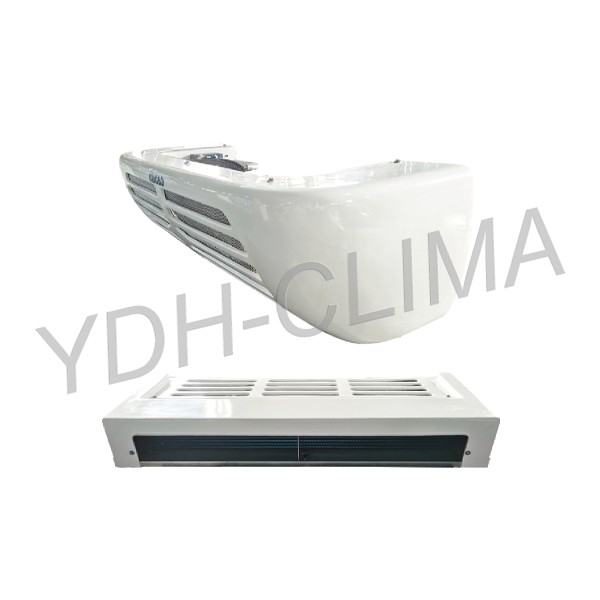

YDH.RF.0071

Applicable temperature(℃):-20~15
Applicable volume(m³):16~20
Cooling capacity/Power consumption(W)
0℃:3950/3590
-20℃:2155/2283
Throttling method: Extemal balance expansion valve
Refrigerant/Charge(kg):R404A/1.6
compressor
Displacement(CC):160
Lubrication oil :RL68H
Condenser assembly
Condenser type:Parallel flow
Fan type:Axial
Number:2
Voltage (v):DC24
Evaporator assembly
Evaporator type:Gilled tubed type
Fan type: Centrifugal
Number:3
voltage:DC24
Dimensions(MM)
Evaporator assembly:1393*540*420
Condenser assembly:1565*630*236
Total current consumption:DC12V/48A,DC24V/25A
Weight ( kg )
Evaporator assembly:40
Condenser assembly:25
NOTE:environmenttemperature is 30°C
