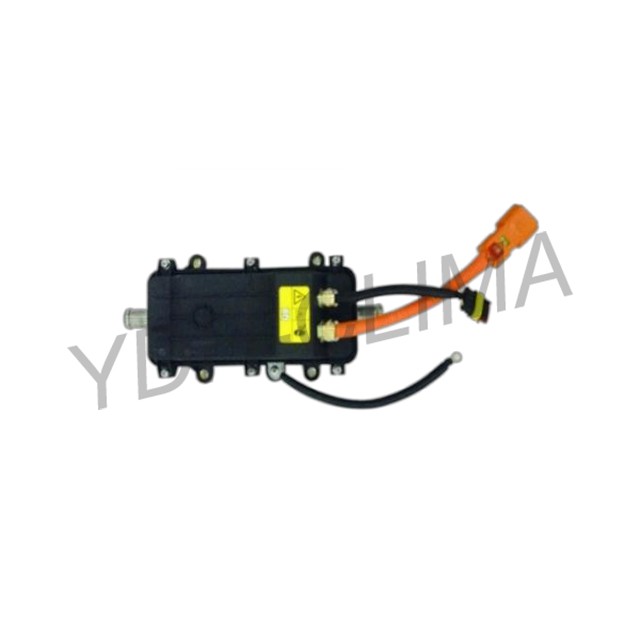

YDH.PH.0015

Overall Dimensions(Length*Width*Height): 232.3*98.3*97mm
Installation Dimension: 144(128)*119mm
Joint Size: φ25, φ20, φ17, φ16mm
High Voltage Connector Model :
C10514N1-02-6-1(Avic optronics)
Low Voltage Connector Model: 282106-1(TE)
Rated Voltage(V): 600
Voltage Range(V): 450~750
Rated Power(W): 6000±10%@10L/min,Tin=0℃
Controller Low Voltage(V): 9~16or18~32
Control Mode: CAN
Note: Please refer to the technical specification for the specific parameters.

EMAIL

Overall Dimensions(Length*Width*Height): 232.3*98.3*97mm

Installation Dimension: 144(128)*119mm

Joint Size: φ25, φ20, φ17, φ16mm

High Voltage Connector Model :

C10514N1-02-6-1(Avic optronics)

Low Voltage Connector Model: 282106-1(TE)

Rated Voltage(V): 600

Voltage Range(V): 450~750

Rated Power(W): 6000±10%@10L/min,Tin=0℃

Controller Low Voltage(V): 9~16or18~32

Control Mode: CAN

Note: Please refer to the technical specification for the specific parameters.
