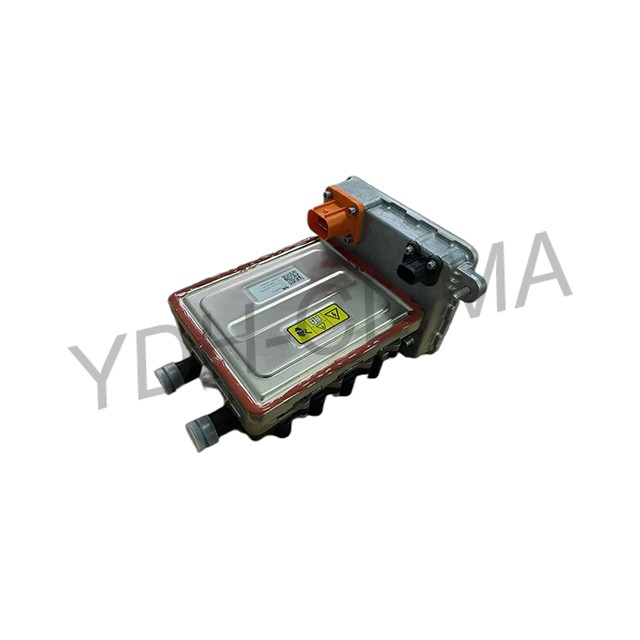

YDH.PH.0030

Overall Dimensions(Length*Width*Height): 224*157.9*121.9mm
Joint Size: φ20mm
High Voltage Connector Model: 2103124-4(TE)
Low Voltage Connector Model: 6188-6386(Sumitomo)
Rated Voltage(V): 350
Voltage Range(V): 200~500
Rated Power(W): 7000(0~+10%)@10L/min，Tin=60℃
Controller Low Voltage(V): 9~16
Control Mode: CAN
Note: Please refer to the technical specification for the specific parameters.
