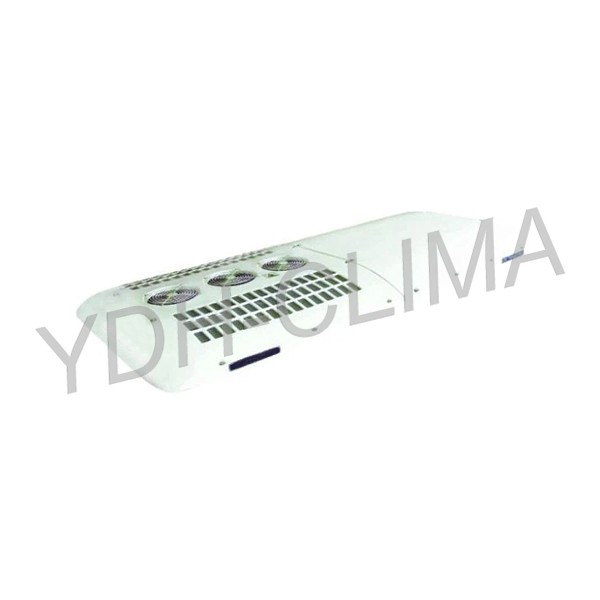

YDH.BS.0032

City bus(m):7.9~8.5
COOLING CAPACITY(kw):22~23
REFRIGERANT:R134a
SUPPLY VOLTAGE(V.DC):24DC
COMPRESSOR MODEL:KBXY32, KBQY4-40N,KBQY4-40N,KBQY4-47N,KBQY4-56N
EVAPORATOR
TYPE:Finned tube type (rifled copper tube,hydrophilic aluminum foil)
FAN
TYPE:Centrifugal type
AIR FLOW (m³/h):~4000
CURRENT (A):28
CONDENSER
TYPE:finned tube type (rifled copper tube,hydrophilic aluminum foil)
FAN
TYPE:Axial flow type
AIRFLOW (m³/h):~6600
CURRENT (A):28
Weight of unit (kg):180
DIMESIONS:3400x1620x160
CONDENSER SYSTEM
COMPARTMENT TEMPERATURE (℃):18-30(continuously adjustable)
DEFROST TEMPERATURE (℃):1~3
AIR VOLUME AD JUSTMENT:Three-level air volume(manualor digital control)
TOTAL CURRENT (A):65
SAFETY DEVICE
HIGH-PRESSURE SWITCH (MPa) :2.6 OFF
LOW-PRESSURE SWITCH (MPa) :≤0.065 ON
Fusible plugs (℃) :95 Optional
Fresh air device:Standard

EMAIL

City bus(m):7.9~8.5

COOLING CAPACITY(kw):22~23

REFRIGERANT:R134a

SUPPLY VOLTAGE(V.DC):24DC

COMPRESSOR MODEL:KBXY32, KBQY4-40N,KBQY4-40N,KBQY4-47N,KBQY4-56N

EVAPORATOR

TYPE:Finned tube type (rifled copper tube,hydrophilic aluminum foil)

FAN

TYPE:Centrifugal type

AIR FLOW (m³/h):~4000

CURRENT (A):28

CONDENSER

TYPE:finned tube type (rifled copper tube,hydrophilic aluminum foil)

FAN

TYPE:Axial flow type

AIRFLOW (m³/h):~6600

CURRENT (A):28

Weight of unit (kg):180

DIMESIONS:3400x1620x160

CONDENSER SYSTEM

COMPARTMENT TEMPERATURE (℃):18-30(continuously adjustable)

DEFROST TEMPERATURE (℃):1~3

AIR VOLUME AD JUSTMENT:Three-level air volume(manualor digital control)

TOTAL CURRENT (A):65

SAFETY DEVICE

HIGH-PRESSURE SWITCH (MPa) :2.6 OFF

LOW-PRESSURE SWITCH (MPa) :≤0.065 ON

Fusible plugs (℃) :95 Optional

Fresh air device:Standard
