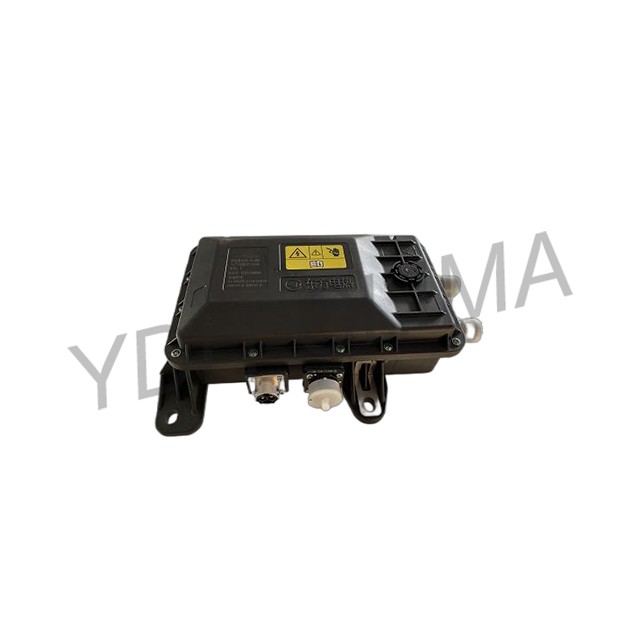

YDH.PH.0022

Overall Dimensions(Length*Width*Height): 251*211*82.5mm
Installation Dimension: 183*160mm
Joint Size: φ20mm
High Voltage Connector Model: HVC2P28MV102,
HVC2P28MV104(Amphenol)
Low Voltage Connector Model: 6188-6227(Sumitomo)
Rated Voltage(V): 614
Voltage Range(V): 500~710
Rated Power(W): 6500±10%@10L/min, Tin=65℃
Controller Low Voltage(V): 9~16or18~32
Control Mode: CAN
Note: Please refer to the technical specification for the specific parameters.
