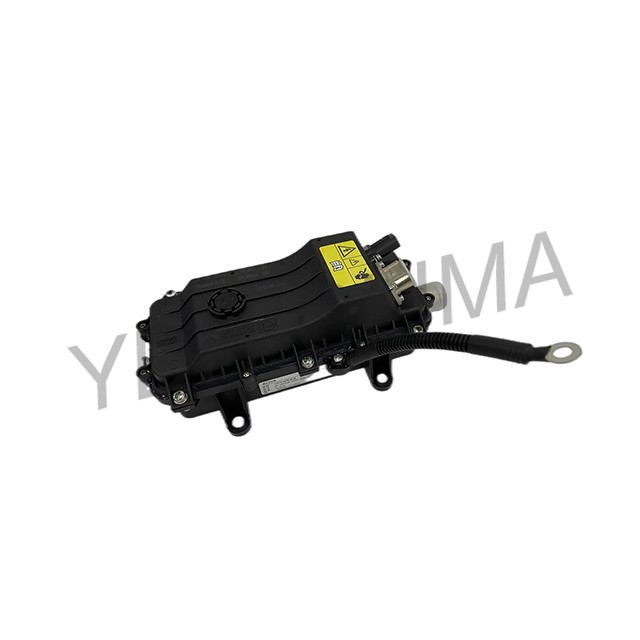

YDH.PH.0013

Overall Dimensions (Length*Width*Height): 232.3*98.3*97mm
Installation Dimension: 144(128)*119mm
Joint Size: φ25, φ20, φ17, φ16mm
High Voltage Connector Model: PL082X-6.1-2.5,
PL082X-6.1-4(Amphenol)
C10514N1-04-1-2(Avicoptronics)
Low Voltage Connector Model: A02-ECC320Q60A1-LVC-4(A)
(Sumitomo Adapt Modules)
Rated Voltage(V): 600
Voltage Range(V): 450~750
Rated Power(W): 6000±10%@10L/min，Tin=0℃
Controller Low Voltage(V): 9~16 or 18~32
Control Mode: CAN
Note: Please refer to the technical specification for the specific parameters.
