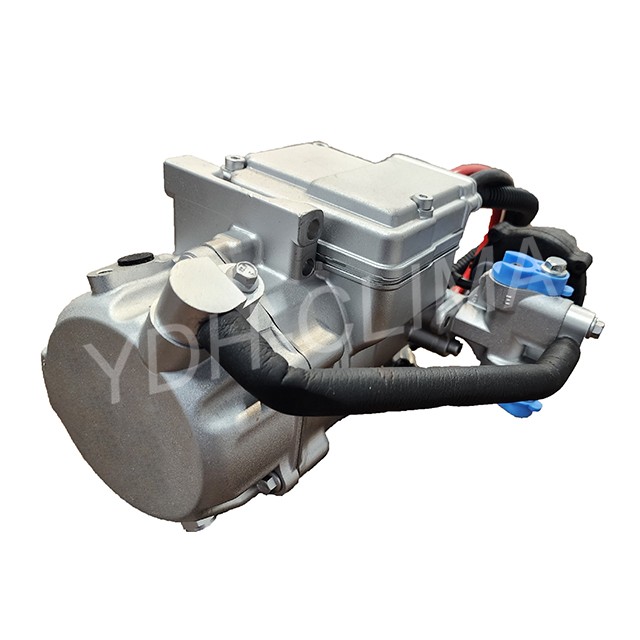

YDH.EC.0189

Max. cooling capacit：5.11Kw
Rated voltage: DC24V
Max. rotation speed: 5000 Rpm
Rated current: 79.5A
Application: Automotive air-condition
Refrigerant: R134a
Refrigerate oil: EMKARATE RL68H
Energy efficiency ratio: 2.68
Eveporating temperature range：-15℃--+21℃
Condensing temperature range： +18℃--+75℃
Compression ratio：10.0 MAX
Starting ambient temperature：-40℃～+70℃
Running ambient temperature：-40℃～+100℃
Displacement: 28 ml/rev
Weight: 5.3 kg
Enthalpy augmentation port: Yes
Compressor cooling method: Self cooling
Waterproof level: IP 67
