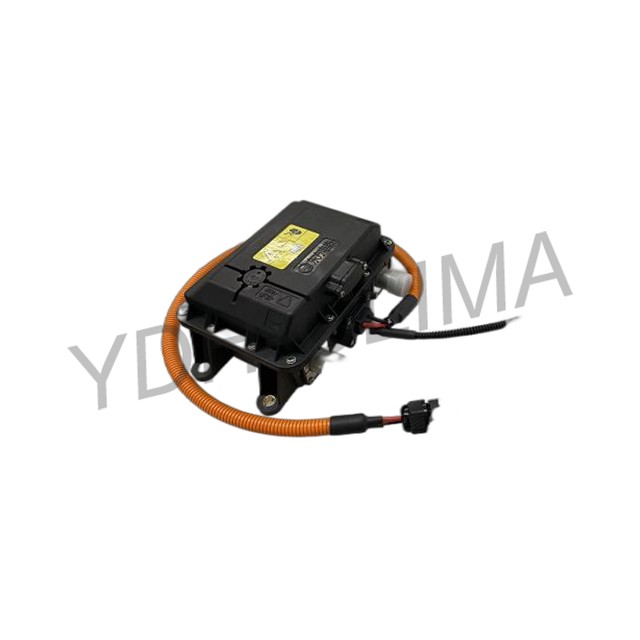

YDH.PH.0025

Overall Dimensions(Length*Width*Height): 209.6*123.4*80.7mm
Installation Dimension: 189.6*70mm
Joint Size: φ20mm
High Voltage Connector Model : ATP06-2S-NFK(Amphenol)
Low Voltage Connector Model: 282080-1(TE)
Rated Voltage(V): 220
Voltage Range(V): 175~276
Rated Power(W): 2500±10%@25L/min, Tin=40℃
Control Mode: Relay control
Note: Please refer to the technical specification for the specific parameters.
